A solar power system is a renewable energy solution that converts sunlight into electricity using photovoltaic (PV) panels. It’s widely used for off-grid, on-grid, or hybrid applications, helping reduce electricity bills and carbon emissions.
Working Principle
-
Solar Panels (PV Modules) absorb sunlight and generate DC (Direct Current) electricity.
-
The Inverter converts DC to AC (Alternating Current) for use in homes/offices.
-
Mounting structures hold the panels in place.
-
Balance of System (BOS) includes cables, junction boxes, batteries (if needed), and protection devices.
-
In grid-tied systems, surplus electricity is exported to the grid; in off-grid, it is stored in batteries.
Types of Solar Systems
| Type | Description | Use Case |
|---|---|---|
| On-Grid (Grid-Tied) | Connected to utility grid. No batteries. | Homes, factories, offices in cities |
| Off-Grid | Independent system with battery backup. | Remote/rural areas with no grid |
| Hybrid | Combines on-grid + battery backup. | Critical load systems, hospitals, institutions |
| Rooftop Solar | Installed on building roofs | Residential & Commercial buildings |

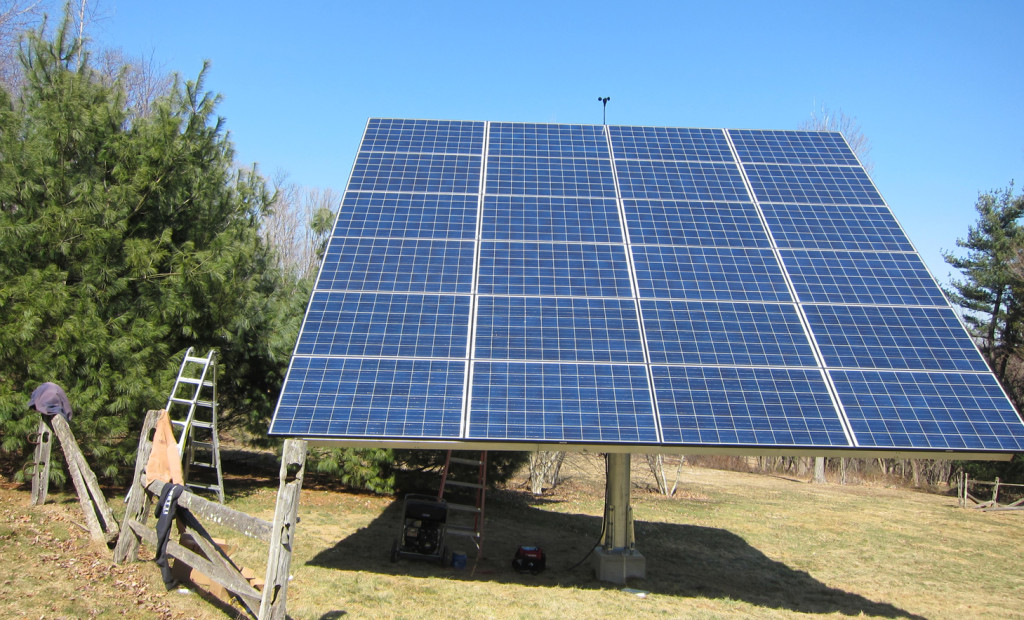

| Ground-Mounted Solar | Installed on open land | Large industrial or utility-scale plants |
| Floating Solar | Installed over water bodies | Dams, lakes, large water reservoirs |
Main Components of a Solar Power System
1. Solar PV Panels
-
Function: Convert sunlight into DC electricity
-
Types:
-
Monocrystalline – High efficiency (~20–22%)
-
Polycrystalline – Lower cost, ~16–18% efficiency
-
Bifacial – Captures sunlight from both sides
-
-
Typical Ratings: 400W – 670W per panel
-
Lifespan: 25+ years (Performance warranty)
2. Solar Inverter
-
Function: Converts DC to AC
-
Types:
-
String Inverter – For homes/commercial setups
-
Micro Inverter – Per-panel conversion (small systems)
-
Hybrid Inverter – With battery support
-
-
Efficiency: 95–98%
-
Protection: Anti-islanding, surge protection, overvoltage, short-circuit
3. Mounting Structure
-
Function: Supports solar panels securely
-
Material: Galvanized Iron (GI), Aluminum
-
Type:
-
Fixed Tilt
-
Adjustable Tilt
-
Tracker (Automatic sun tracking – optional)
-
-
Wind Load Rating: Designed for 150–180 km/h wind speeds
4. Solar Battery (Optional)
-
Function: Stores solar energy for backup or night-time use
-
Type:
-
Lead Acid (Tubular, flooded)
-
Lithium-ion (LiFePO4 – long life, compact)
-
-
Capacity: 1 kWh to 100+ kWh (customizable)
-
Cycles: 1500–6000+ cycles (depending on chemistry)
5. Charge Controller (for off-grid systems)
-
Function: Manages battery charging to avoid overcharging
-
Type: PWM / MPPT
-
MPPT (Maximum Power Point Tracking): Higher efficiency
6. Balance of System (BOS)
Includes:
-
DC/AC Cables
-
MC4 Connectors
-
Combiner Box / Junction Box
-
Earthing Kit
-
SPD (Surge Protection Devices)
-
MCBs, MCCBs, Fuses
-
Monitoring System (Wi-Fi/GPRS)
Sample Technical Specification – 10 kW On-Grid Solar System
| Item | Description |
|---|---|
| System Type | On-Grid, 3-phase |
| PV Panels | 25 × 400W Monocrystalline (Total: 10 kW) |
| Inverter | 10 kW, 3-phase, string inverter |
| Structure | GI Mounting with 15° tilt |
| Monitoring | WiFi-enabled online portal/app |
| Protection | SPD, Earthing, DC/AC isolator |
| Expected Generation | 40–45 units/day |
| Annual Yield | 14,000 – 16,000 kWh/year |
| Area Required | ~800 – 1000 sq.ft. |
| CO₂ Saving | ~12–15 tons/year |
| Lifespan | 25 years (panels), 10 years (inverter) |
System Sizing Guide (Estimates)
| Daily Usage | System Size | Panel Count (400W) | Area Needed |
|---|---|---|---|
| 5–7 units/day | 2 kW | 5–6 panels | ~200 sq.ft. |
| 10–12 units/day | 3 kW | 8 panels | ~300 sq.ft. |
| 15–20 units/day | 5 kW | 12–13 panels | ~500 sq.ft. |
| 30–35 units/day | 10 kW | 25 panels | ~900 sq.ft. |
Maintenance Requirements
| Task | Frequency |
|---|---|
| Panel Cleaning | Weekly / Bi-weekly (dust-free = higher efficiency) |
| Visual Inspection | Monthly |
| Inverter Log Check | Monthly |
| Battery Maintenance (if any) | Quarterly |
| Earthing & SPD Testing | Yearly |
Key Standards & Certifications
-
IEC 61215 – PV Panel Performance
-
IEC 61730 – PV Panel Safety
-
IEC 62109 / 61683 – Inverter safety and performance
-
MNRE Approved – India-specific solar approval
-
ISO 9001 / 14001 / 45001 – Quality, Environmental & Safety
-
Net Metering Policy – Local electricity board approval for on-grid
Advantages of Solar Energy
-
Reduce electricity bills up to 90%
-
Long-term investment (payback in 3–5 years)
-
Eco-friendly – zero emissions
-
Low maintenance
-
Increases property value
-
Government subsidies available (up to 40% in many regions)
