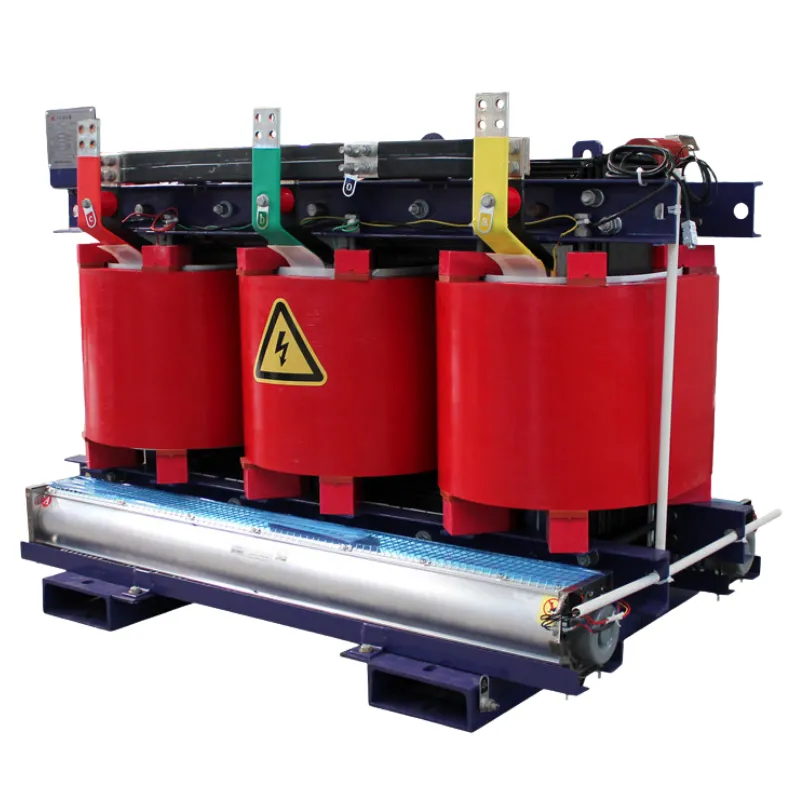

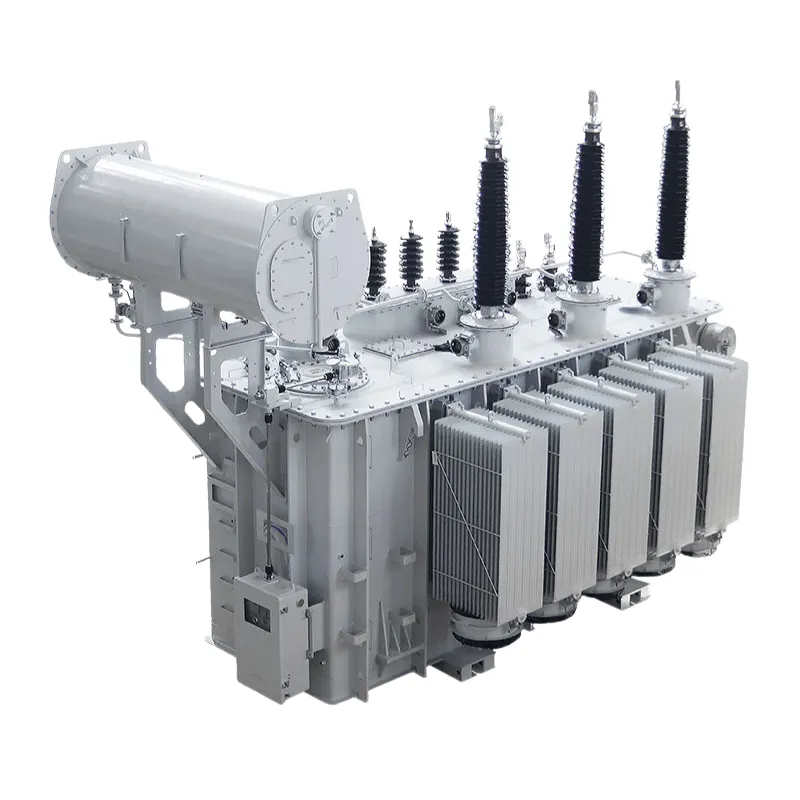

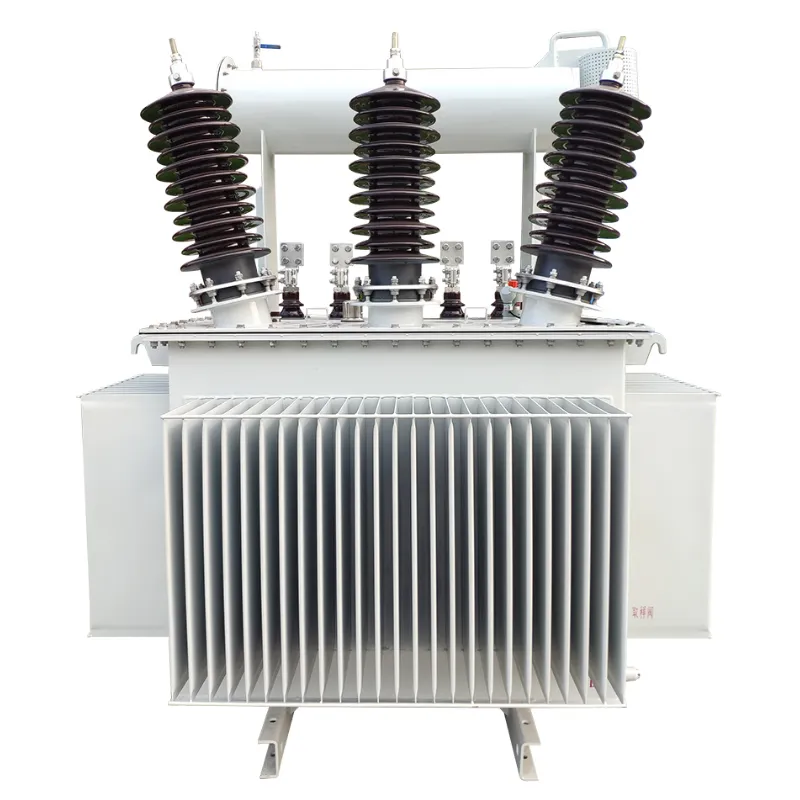

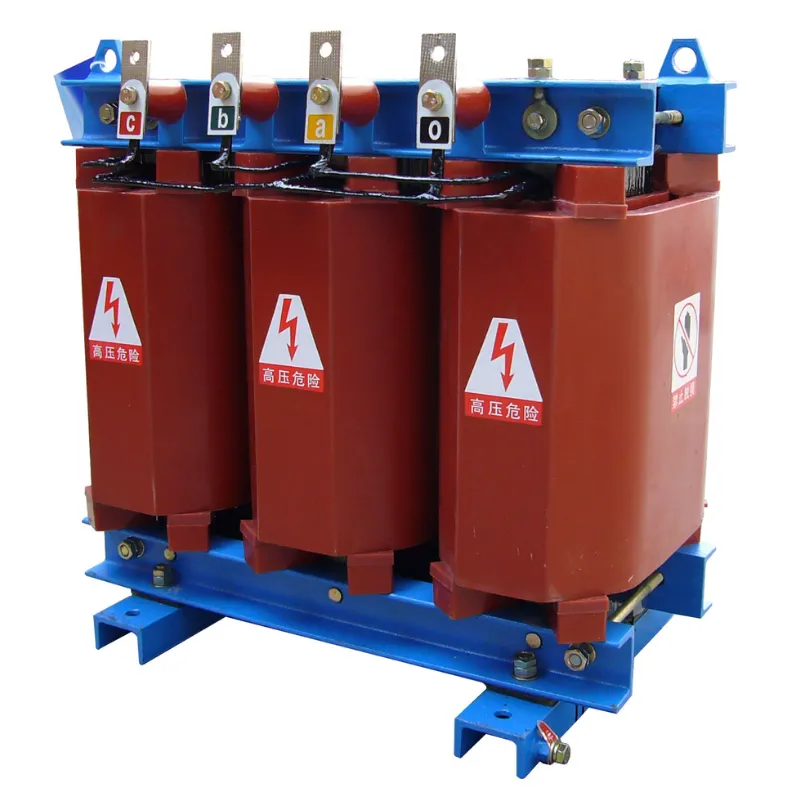

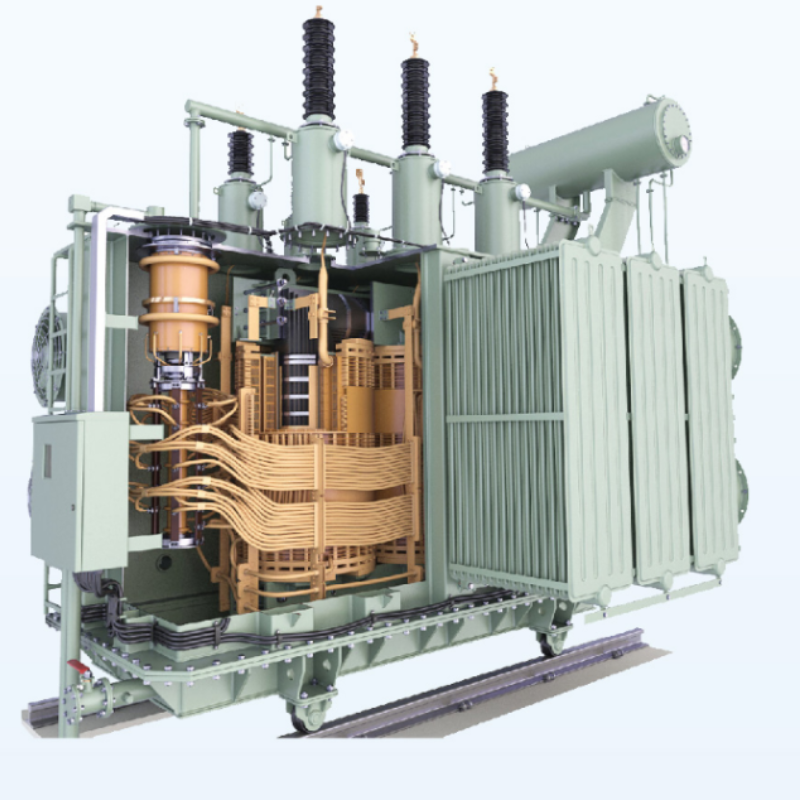

Transformer

Rated Capacity: 50kVA to 100MVA
-Voltage Ratio: Customizable (e.g., 11kV/0.4kV)
-Cooling Method: ONAN, ONAF, OFAF
-Efficiency: Up to 99.8%
-Noise Level: ≤65dB(A)

Product Brief Description:
The transformer efficiently converts voltage levels for power transmission and distribution. Designed with advanced cooling systems and high-quality cores, it ensures minimal energy loss and long-term reliability.

Parameter Specification:

Key Features:
Low Losses: Amorphous core options for ultra-high efficiency.

Durability: Epoxy resin coating for moisture and chemical resistance.

Smart Monitoring: Built-in sensors for temperature and load tracking.

Eco-Friendly: Compliant with RoHS and REACH directives.

Applications:

• Utility substations and grid interconnections
• Industrial plant power distribution
• Offshore wind farm step-up systems

• Our Remarkable Features:

  • Compact, Low maintenance designs that are built for trouble-free operation.
  • Laser-Grade type high efficient tank design.
  • High reliability for lifetime.
  • Greater Value for Money.
  • Quick Delivery.
  • Long warranty period.

    STANDARDS            • IEC-76, BS-1 71 , ANSI C57.12, VDE 0537

  FREQUENCY             : 50 Hz, on request 60 Hz

  RATINGS                 • For ratings higher than 50 MV A please consult us

  PRIMARY VOLTAGE • For values above 24 kV and up to 36 kV please consult us. Double high voltages (example 15-20 kV) can be offered

  STANDARD TAPPINGS : ± 2.5 96; ± 5 % or ± 96; -7.5 % and others on request SECONDARY VOLTAGE : 400 to 433 V other values may be offered.

  Double low voltages with 7 LV bushings can be offered with full rating on both voltages or with reduced rating (75%) on lowest voltage
